Forged Carbon Steel, Stainless Steel Fittings for High Pressure 3000/6000/9000 lbs
Type |
Union, Coupling, Elbow, Tee, Nipple, Reducer |
Size |
1/4" Dia to 4" Dia in sch 5, 10, 20, 40 (Stainless Steel) |
Specifications |
ASTM A 1057182 to ANSI B 16,11 |
Ends |
Screwed BSPT / NPT Socket Weld |
|
Buttweld Forged Carbon Steel / Stainless Steel
Type |
Elbow (R=1.5D), Bends (R=3D), Tee, Reducer |
Size |
1/2" to 24" |
Specifications |
ASTM A 234, A 403 to ANSI B 16.9 |
Ends |
Buttweld |
|
Water & Gas Line Galvanize / Steel Fittings
Size |
1/2" to 8" |
Specifications |
IS 1239 Part II, 1879 and With / Without ISI Marked |
|
Sample Drawings of Butt Weld
|
|
|
|
|
|
|
Elbows |
Equal Tees |
Reducing Tees |
Concentric Reducers |
Eccentric Reducers |
End Caps |
Induction Pipe Bend |
|

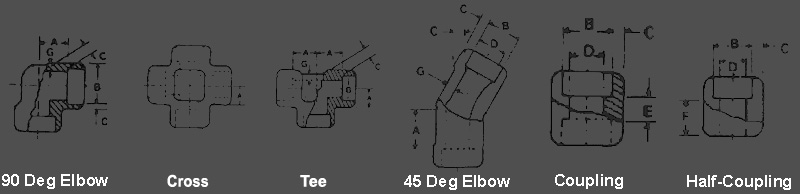

American National Standard Socket Weld
|
|
|
